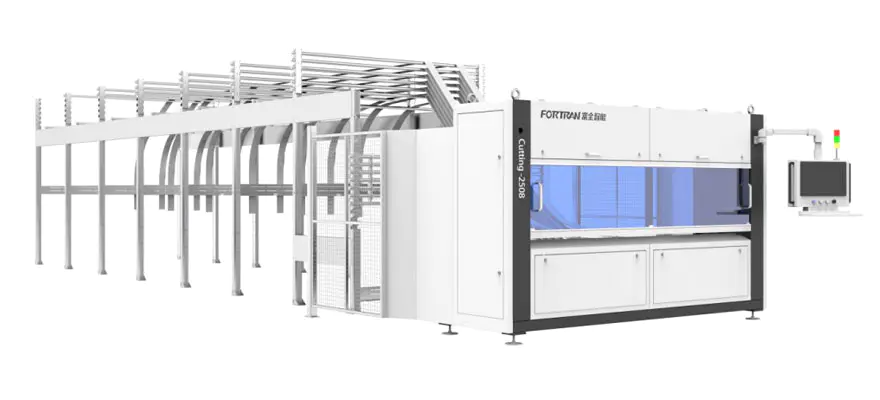

Automatic High Speed Paper Cutting Machine

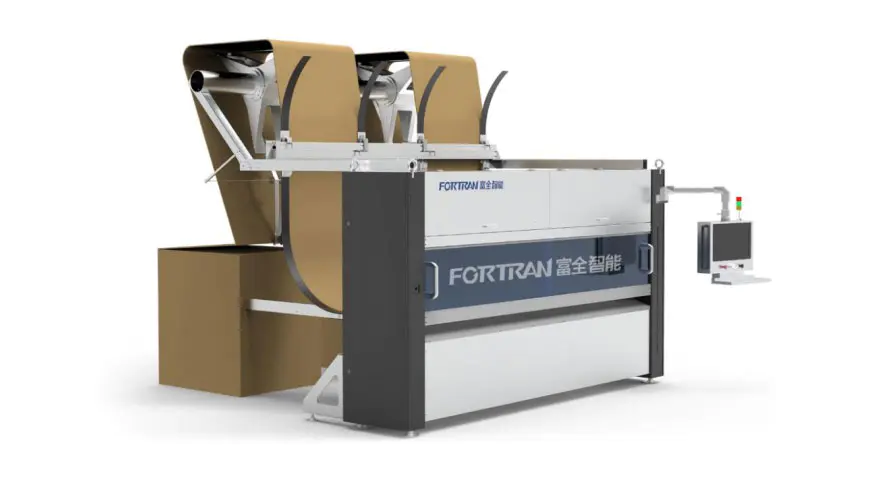

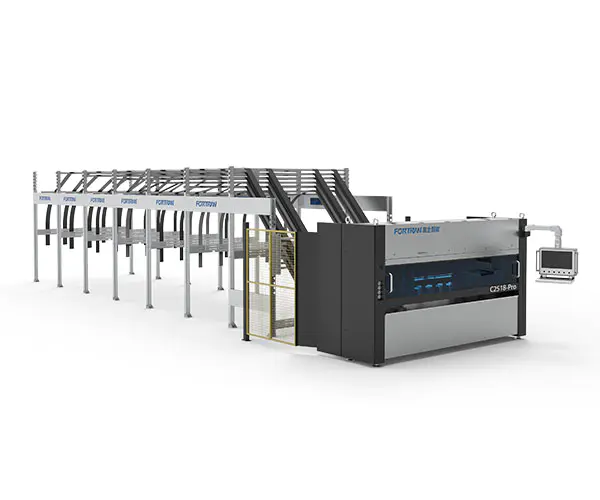

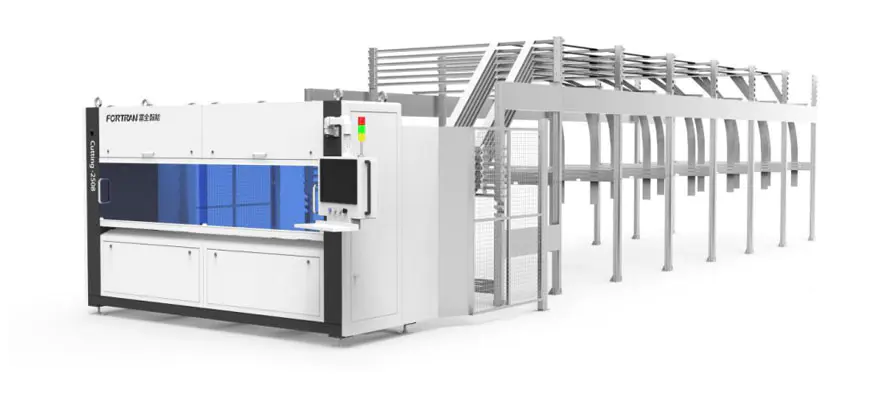

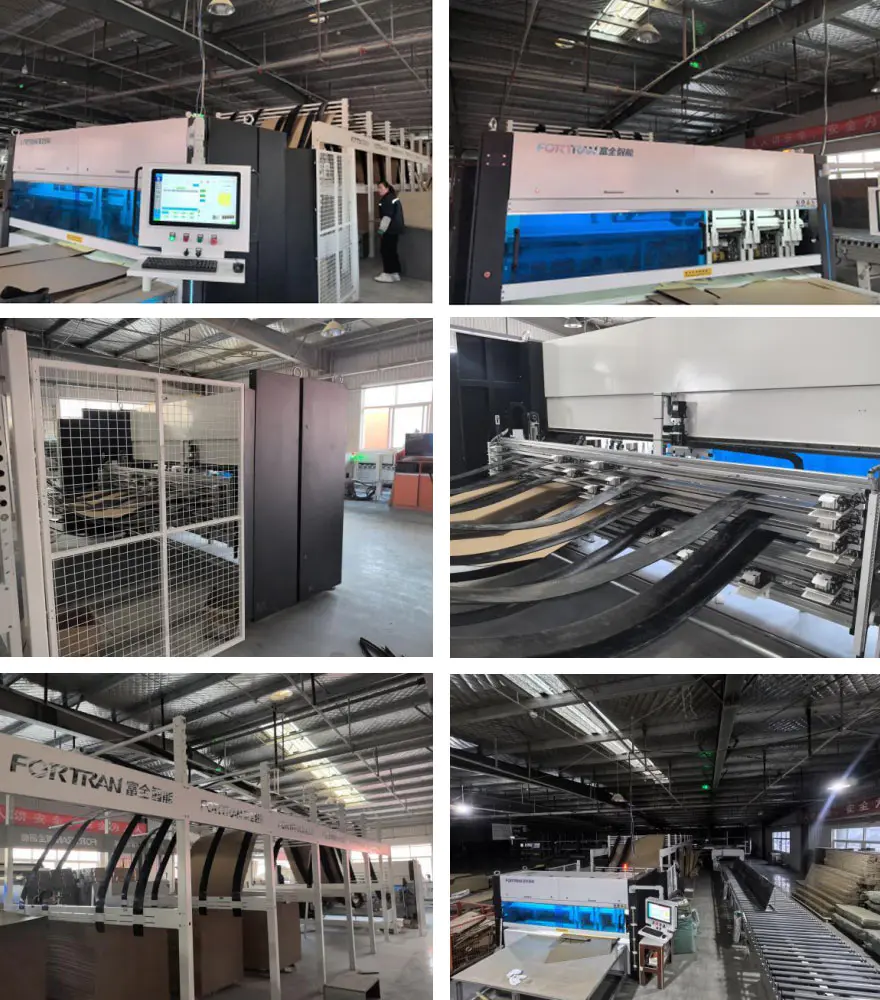

Machine Image

Machine specifications

Dimensions L*W*H(mm)	Basic Specifications	Power supply (kW)	Cutting Speed (M/min)	Working height (mm)
14750*4040*3000	11 vertical+1 horizontal knives, full-servo control, with 6 magazines	5.8	0-120	850

Processing Parameters

Min. Cutting Length L (mm)	Max. Cutting Width W (mm)	Cutting Thickness for Corrugated Paper H (mm)	Longitudinal Blade Spacing Precision (mm)	Efficiency (PCS/min)
300	2550	2-7	±1.5	0-12

General Description of Functions

The Automatic High Speed Paper Cutting Machine is used for continuous fixed-length processing of corrugated paper and single sheets to produce folding cartons.The machine performs creasing in both the transverse and longitudinal directions,intermittent cutting,and cutting processing on the corrugated paper.Fixed-length cutting allows for both mass production and customized production.The machine can be used as a standalone unit or as the initial part of a packaging line.

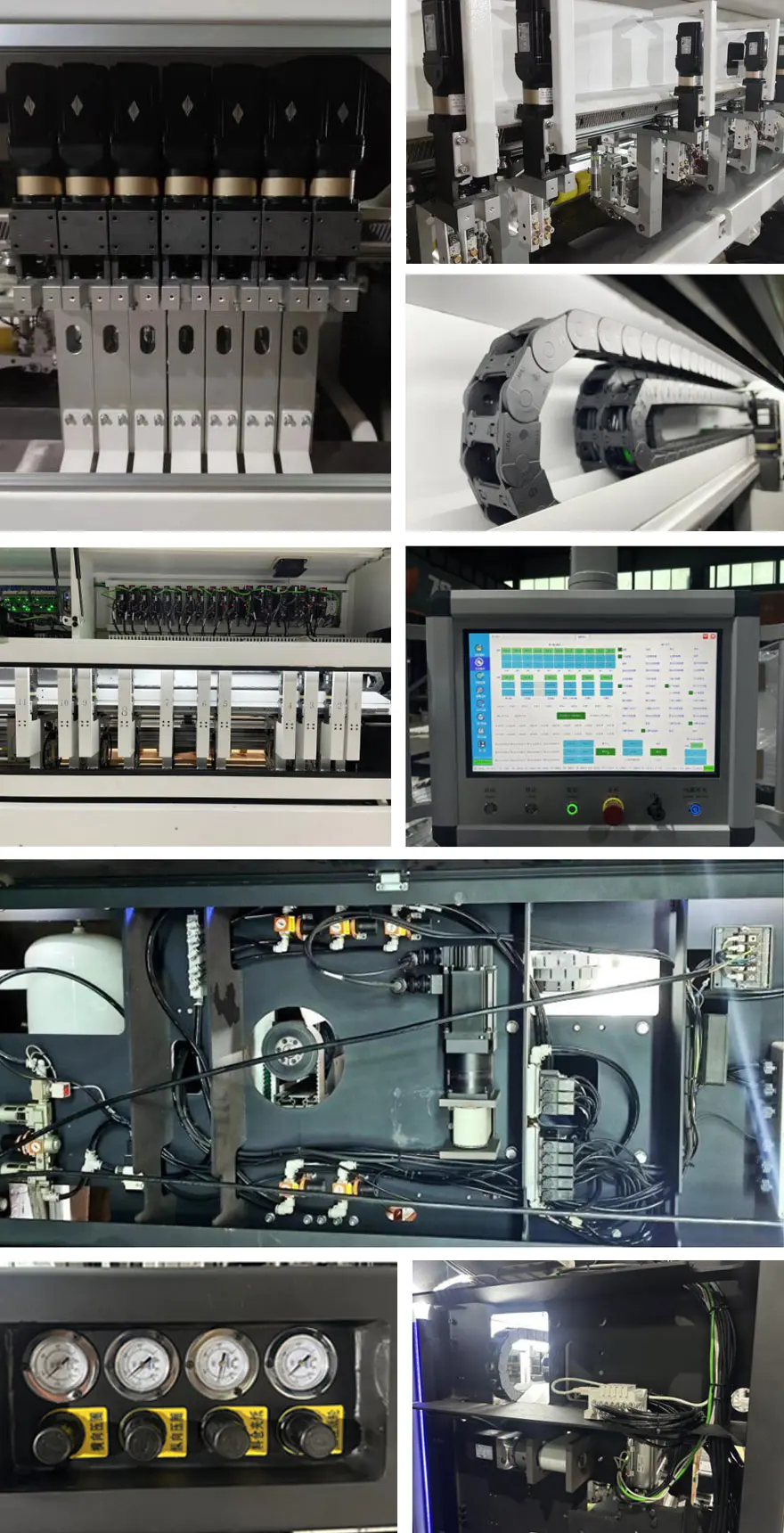

No.	Item	Features

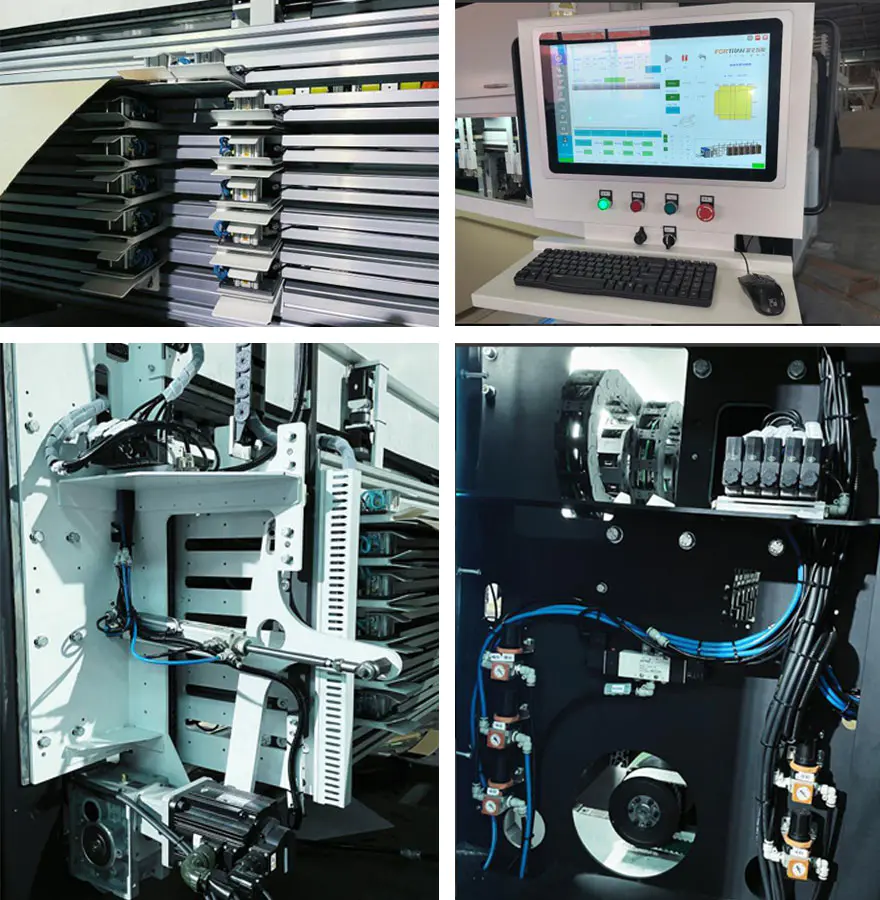

1	Paper Storage Rack	The paper storage rack is made from acid-washed steel plates and processed by bending. It features a simple structure, reliable construction, and is treated with cold galvanization, resulting in an attractive appearance and excellent rust resistance. The standard configuration includes 6 paper storage compartments, which can be adjusted according to different customer needs, offering high flexibility and strong adaptability.
2	Frame Structure	The frame is manufactured by precision machining after welding rectangular steel tubes and steel plates. It ensures high assembly accuracy and operational precision, guaranteeing a long service life and excellent stability of the equipment.

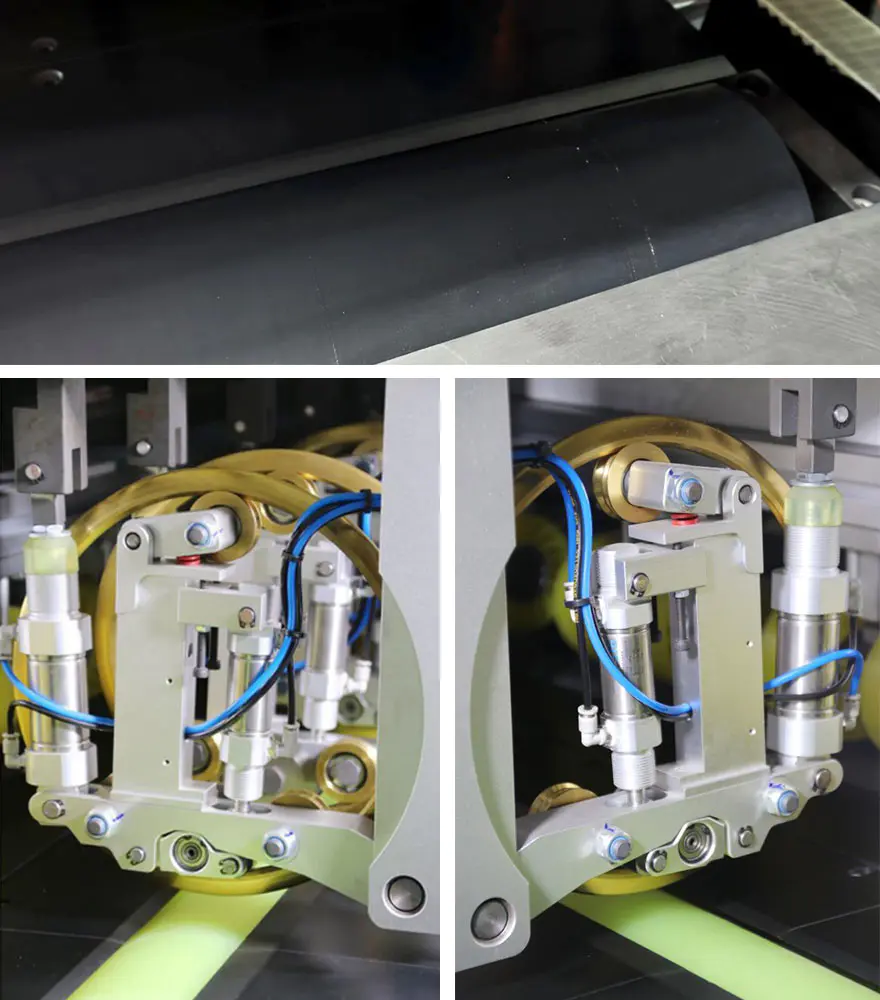

3	Drive Mechanism	The feed pressure roller is made of PU material, which has a bright and attractive surface with high friction. This effectively enhances the reliability of paperboard conveyance. Meanwhile, the traction drum isimported from Germany and is highly durable.
4	Cross-Cutting Structure	The power is provided by a high-precision servo motor combined with a reducer and a synchronous wheel mechanism, which achieves hig
5	Longitudinal Cutting Unit	This mechanism is primarily composed of 7 sets of knife holders. The knife configuration of 7+1 allows for universal cutting of box types 410 and 411. It is designed to meet the demands of high-efficiency operation while ensuring durability;

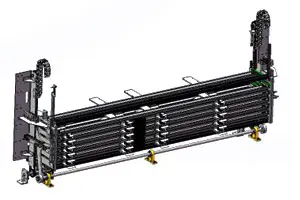

6	Adjustable Storage device	Both ends of the motherboard by CNC machining to ensure the parallel sides, the use of high-strength chain up and down to ensure safety and reliability does not skip teeth, in order to improve the accuracy and efficiency of operation, we use high-precision bevel gear reducer equipped with high-precision service motor; In order to improve the utilization rate of paper, we set this institution as 6 paper libraries, which can be increased or decreased according to different customer needs, convenient and fast, and strong adaptability;

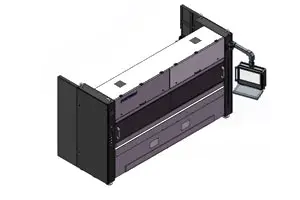

7	Machine Enclosure	The primary function is to decorate the machine itself.An external protective cover is added to the machine.The cover is treated with plastic spraying,which makes it aesthetically pleasing,delicate,and resistant to paint chipping.The observation window at the front of the machine is made of acrylic sheet,which gives it an attractive and elegant appearance,as well as high toughness and resistance to shattering.

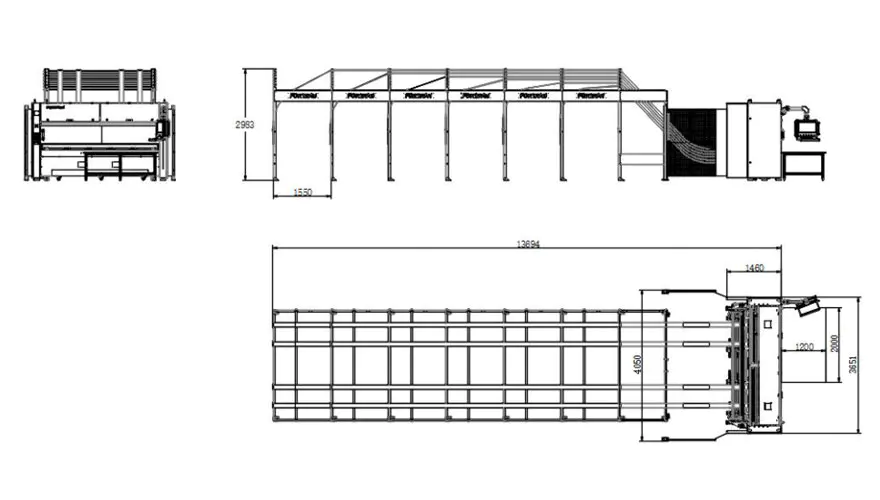

Three-View Drawings

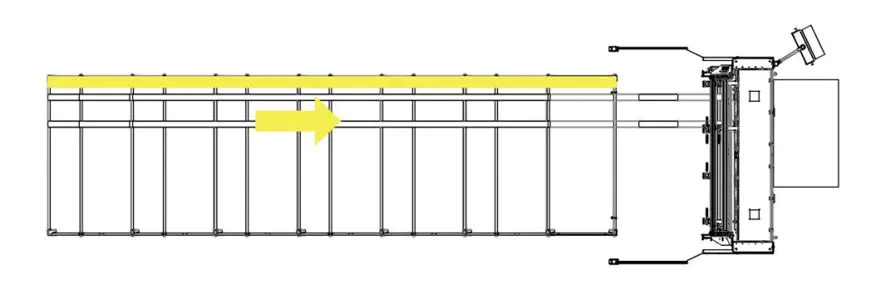

Schematic Diagram of Production Process Mode

Consumable Requirements

1.Requirements for Corrugated Paper at the Feeding Station

A.Continuous corrugated paper width:400–2550 mm;
B.Total width of corrugated paper clamped side by side:Maximum 2550 mm;
C.Stacking height,including a 120 mm pallet:Maximum 1300 mm;
D.Stacking width,maximum:1300 mm;Length of corrugated paper at the discharge point:Minimum 300mm;
E.Longitudinal tolerance for fixed-length cutting:Maximum 0.5%;Transverse tolerance for fixed-length cutting:Maximum±2.0 mm;
F.Corrugated paper thickness:2-7 mm,±0.2 mm;Maximum raw material quality up to 2.30 BC(according to DIN 55468 standard);
G.The quality of the cardboard complies with the DIN 55468 standard;
H.Single corrugated,maximum thickness of approximately 4 mm(quality:1.10–1.40);Double corrugated,maximum thickness of approximately 7 mm.

2. Carton types

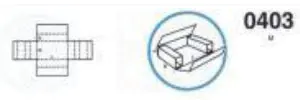

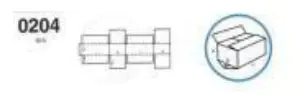

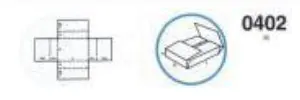

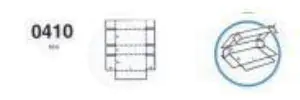

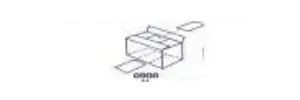

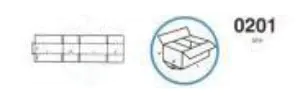

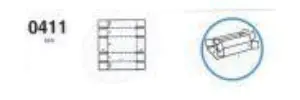

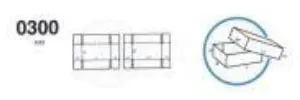

Serial number	Name	Image	Paper feed direction	Minimum size
1	Ordinary box		longitudinal	Length: minimum 400mm Width: minimum 36mm Height: minimum 225mm
2	Ordinary box		longitudinal	Length: minimum 400mm Width: minimum 36mm Height: minimum 225mm
3	Heavenand Earth Cover		longitudinal	Length: minimum 400mm Width: minimum 225mm Height: minimum 18mm
4	Middle Seal Box		longitudinal	Length: minimum 400mm Width: minimum 450mm Height: minimum 18mm
5	Middle Seal Box		longitudinal	Length: minimum 400mm Height: minimum 450mm Height: minimum 18mm
6	All-wing box		longitudinal	Length: minimum 400mm Height: minimum 225mm Height: minimum 18mm
7	Middle Seal Box		longitudinal	Length: minimum 400mm Height: minimum 450mm Height: minimum 18mm
8	Square cardboard		longitudinal	Length: minimum 400mm Height: minimum 18mm

List of Main Components Configuration

No.	Item	Specifications	Q'ty	Noted
1	Longitudinal blade unit		7 SETS	The quantity can be customized according to requirements
2	Horizontal blade unit		1 SET
3	Roller assembly		3 PCS
5	Transverse Synchronous Belt		1 PCS
6	Synchronous Belt		2 PCS
7	Traction Servo Motor		2 SETS
8	Traction Reducer		2 SETS
9	Adjustment Storage Servo Motor		1 SET
10	Adjustment Storage Reducer		1 SET
11	Blade Moving Motor		7 SETS	The quantity can be customized according to requirements
12	Blade Moving Reducer		7 SETS
13	Pneumatic Components		1 SET
14	Electrical Control Box	——	——
15	Electrical Components	Photoelectric sensors, Cables, Reflectors, Electrical components	——
16	Controller	Drivers, Firmware, modules	——

List of Wearable Parts and Consumables

1. Wearable Parts List

No.	Item	Specifications	Suggested Q'ty	U8 number
1	Feeding Shaft Bushing	PCM260-02-020-260	6
2	Pushing Shaft Bushing	CZJ260-02-010-300	2
3	Seamless Green Silent Synchronous Belt with Steel Core (Xiet)	75-AT10-6910	1
4	Solenoid Valve	SY5120-5GZD-01	2
5	φ66xφ16x0.8 Circular Tooth Blade	PCM260-03-010-010	2
6	Solenoid Valve	4N330C08B	1
7	Slider	HGH15CA	2
8	Precision Pressure Reducing Valve	SDR20008JN	2
9	Seamless Polyurethane Synchronous Belt with Steel Wire - Silent type	AT10x50xL1290	1
10	Relay	RXT-F01K D24	1
11	Fuse	5*20mm 0.1A	5
12	Limit Switch	XCK-N2145P20C	2
13	Proximity Switch	IME12-06BPSZW2S	2
14	Seamless Polyurethane Synchronous Belt with Steel Wire - Silent type	AT10x50xL920	1

Consumables list

1	Paper Cutting Power Rubber Roller B	PCM260-01-020-300	1
2	φ66xφ16x0.8 Circular Tooth Blade	PCM260-03-010-010	2
3	Feeding Shaft Bushing	PCM260-02-020-260	2
4	Pushing Shaft Bushing	CZJ260-02-010-300	1
