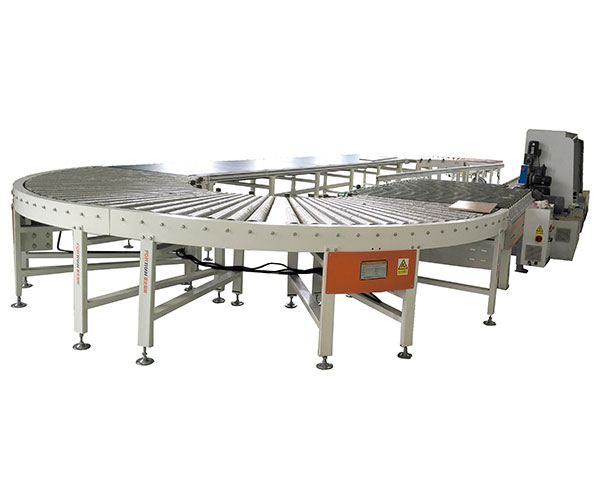

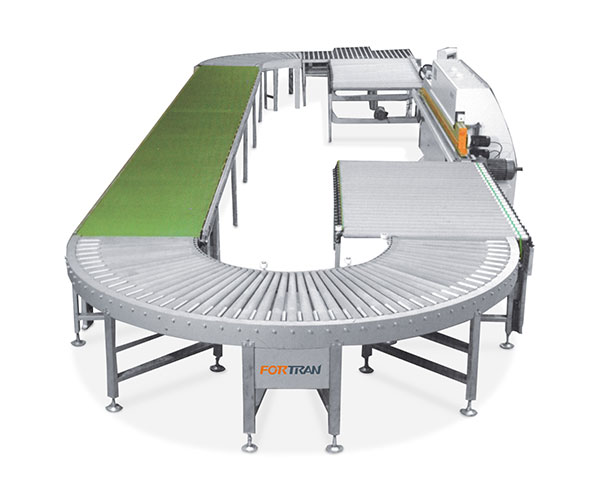

Returning Conveyor Line for Edge banding machine
  • Returning Conveyor Line for Edge banding machineReturning Conveyor Line for Edge banding machine
  • Returning Conveyor Line for Edge banding machineReturning Conveyor Line for Edge banding machine

Returning Conveyor Line for Edge banding machine

Returning Conveyor Line for Edge banding machine is a kind of automation line for single one edge banding machine automatic returning. Returning Conveyor Line for Edge banding machine is mainly used in the full-automatic edge banding assembly line for the production of furniture board, cabinet board and so on.

Send Inquiry

Product Description


1.Product Introduction


Returning Conveyor Line for Edge banding machine can effectively reduce production cost and improve production efficiency. Returning Conveyor Line for Edge banding machine is suitable for the smooth transmission and conveying process which is with low beating rate and good performance. Returning Conveyor Line for Edge banding machine is mainly used for edge banding machine U-returning of furniture panel, the roller center distance is 80mm which can pass workpiece with small size like 250*80mm.



2. Product Parameter (Specification)



Model FQ-WDHZ
Main Beam 240*50 Aluminum
Roller Dia. 56mm with rubber covered
Rubber thickness 3mm
Distance between rollers 80mm
Min panel size 200*200mm
Max panel size 1200*2400mm
Panel thickness 10-60mm
Conveying speed 10-28 meters/min
Frequency converter Taiwan Delta
Power supply (voltage and frequency) 3 phase, 380V, 50Hz, 4.3KW
Edge banding machine length 6000mm
Edge banding machine working height 900±50mm


3. Product Feature And Application

1.The supporting feet are bent integrally, and the supporting lug seat is formed by high-quality integrated die casting
2.The roller surface is covered with imported bright silver gray rubber (wear-resistant and not vulnerable)
3.The edge sealing of the workpiece on the rotary line is not off-line, which effectively saves 50% of the labor intensity
4.The whole line equipment has good stability, high manual operation safety and simple equipment maintenance



4.Product Details
