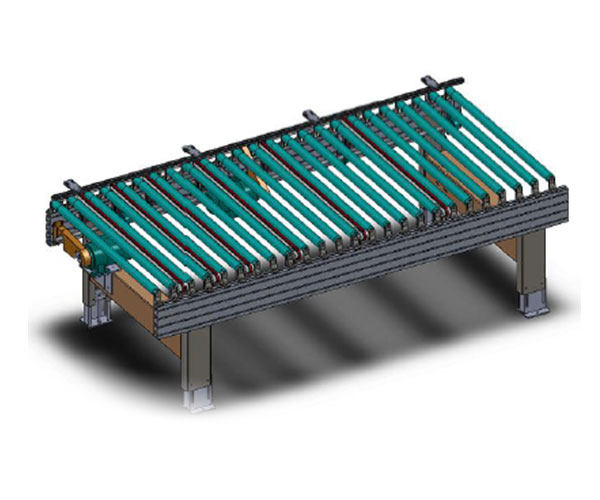

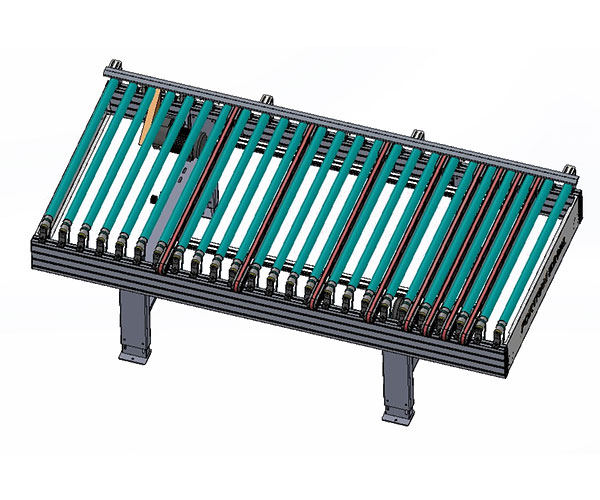

Powered Roller Conveyor with Translation Device

1.Product Introduction

Powered roller conveyor with translation device can be applied to panel or door production sections. Powered roller conveyor with translation device is applicable to automatic conveyor system for edge banding and automatic system for CNC drilling machine.

2. Product Parameter (Specification)

a. Powered Roller Conveyor with Translation Device for Panel:

Model	FQ-DLPY1530
External Dimension	L3000*W1530*H900mm
Panel length	250-2400mm
Panel width	250-1200mm
Main beam	240*50 aluminum
Loading capacity	100kg/m²
Roller distance	120mm
Roller diameter	φ54
Roller rubber thickness	2mm
Total power	0.75KW*2
Speed	10-28m/min
Synchronous belt	Shanghai Yongli
8 synchronous belts (Roller distance is 120mm when there is a synchronous belt.)
Working height	900mm
Photoelectric switch	German Sick
Frequency converter	Delta/ Inovance
Electric machinery	WANSHSIN
Pneumatic components	Taiwan AirTA

b. Powered Roller Conveyor with Translation Device for Door:

Model	FQ-DLPY1531
External Dimension	L3000*W1530*H900mm
Panel length	1000-2400mm
Panel width	1000-1200mm
Main beam	240*50 aluminum
Loading capacity	100kg/m²
Roller distance	200mm
Roller diameter	φ54
Roller rubber thickness	2mm
Total power	0.75KW*2
Speed	10-28m/min
Synchronous belt	Shanghai Yongli
-8 synchronous belts
Working height	900mm
Photoelectric switch	German Sick
Frequency converter	Delta/ Inovance
Electric machinery	WANSHSIN
Pneumatic components	Taiwan AirTAC

1.The main beam is made of high-strength aviation aluminum, which conforms to the international standard ICE 61131.
2.The joint part is precisely welded by Japanese OTC robot, which is corrosion-resistant and moisture-resistant for a longer service life.
3.The roller surface adopts imported bright silver gray rubber, which is wear-resistant.
4.The foot adopts the integrated bending process, which is firm and durable.
5.The industry's first synchronous belt structure transmission, no noise and stable transmission

4.Product Details
