Automatic Plate Cleaning Machine Manufacturers

Technical Parameters

Total Power	5.9kW
Minimum Panel Size	300*30mm
Maximum Panel Size	1250*3500mm
Panel Thickness	8-60mm
Processing Speed	0-25m/min
Operation Height	900mm
Footprint	W1850mmL2060mmH1700mm
Dust Port Size	100/2 pieces

Dust Removal Brushes	1 set (2 pcs) anti-static high-density spiral brushes
Dust Suction Ports	1 set of upper dust suction ports
Dust Removal Fans	1 set (2 pcs) upper dust suction ports
Cleaning Cloths	24 sets of double-layer cleaning cloths
Motors	8 units
Loading/Unloading Platform (Optional)	2m powered belt conveyor + 2m non-powered roller table

Efficiency Parameters

Cost Comparison: Inline Panel Cleaning Machine vs. Manual Cleaning
Manual Cleaning		Inline Panel Cleaning Machine		Comparison (Machine vs. Manual)	Remarks
Cleaning Efficiency (m²/person/day)	Approx. 100 m²/person/8 hours	Cleaning Efficiency	Approx. 1200 m²/machine/2 people/8 hours	12x Faster	Machine boosts single-operator output by 6x
Labor Cost (CNY/m²)	1.5 $/m²	Cleaning Cost (CNY/m²)	0.2 $/m²	Saves 1,300 $/day in labor costs	Total cost with machine is 1/5 of manual cleaning at equal output
Additional Advantages of Machine Cleaning Over Manual Wiping: ■ High cleaning efficiency, drastically shortening delivery lead times ■ Superior cleaning performance: Delivers excellent results on surfaces that are difficult or impossible to clean manually (e.g., solid color, skin-touch, matte finishes) ■ Consistent cleaning quality: Eliminates quality variations caused by inconsistent manual operation or worker negligence ■ Reduces labor headcount and simplifies workforce management

Performance Advantages

·Industry-unique design with patented exclusive structure
·Three-in-one dust removal module (blowing, sweeping, suction) for ultimate dust removal
·24 sets of double-layer cleaning cloths for maximum cleaning capacity
·Unique cloth configuration: combination of hard/soft and dry/wet cloths
·Industry-first slide-rail quick cloth replacement system
·Permeable liquid spray tubes for reduced cleaning fluid consumption
·Full corrosion-resistant piping with metal fittings and Teflon tubes
·Stainless steel & aluminum alloy cloth frames, corrosion-resistant and anti-static
·Boosts efficiency, lowers total cleaning cost, improves quality, and ensures consistency
·Double-sided cleaning: removes dust, stains, oil, residue, glue spots, glue lines, and static electricity
·Eliminates harmful residues, odors, and suppresses initial formaldehyde emissions
·Connectable to production lines for automated flow from edge banding → sorting → packaging

Unique Advantages

Active Positive Pressure Fresh Air Ventilation System (Dual Independent Fans)
Unlike passive exhaust relying only on central dust collection, this machine uses an independent active fresh air system with dual motors (intake + exhaust) for directional air exchange inside the chamber:
·Positive pressure ventilation: Clean air is actively supplied while contaminated air is forced out, maintaining steady airflow
·Rapid chemical gas dispersion: Prevents buildup of cleaning fluid fumes, formaldehyde, and processing vapors, protecting electrical components and operators
·Thermal balance management: Dissipates heat from motors and drives to stabilize chamber temperature, avoiding performance fluctuations and accelerated aging
·Compatible with external central dust collection; dual systems work independently for enhanced workshop dust removal

Smart Protection Features

·Automatic Panel Height Detection System: Equipped with height sensors at the infeed, the system automatically blocks over-height panels, preventing non-compliant workpieces from entering the Automatic Plate Cleaning Machine and eliminating equipment damage caused by misoperation.
·Panel Cleaning Fluid Level Sensing Device: Real-time monitoring of the liquid level in the storage tank, with automatic early warning when the level is insufficient, to prevent dry running and damage to the water pump.

Structural Craftsmanship & Mechanical Quality

·High-rigidity overall frame design: Welded from high-quality section steel, it resists vibration and deformation, ensuring structural stability during high-speed operation.
·Dual-curved surface motor-driven belt conveyor: Delivers smooth, durable transmission, significantly reducing belt slippage and wear.
·Permeable spray tube design: Ensures precise penetration of cleaning fluid onto cloths, saving water consumption and reducing consumable costs.
·Full-set corrosion-resistant piping system: Features metal fittings + PTFE (Teflon) tubing, resistant to acid and alkali corrosion for a longer service life.
·Stainless steel + aluminum alloy cloth holder structure: Corrosion-resistant and prevents static accumulation.
·Industry-first slide-rail quick-change cloth structure: Tool-free, single-person operation completes replacement in seconds, drastically reducing downtime for maintenance.

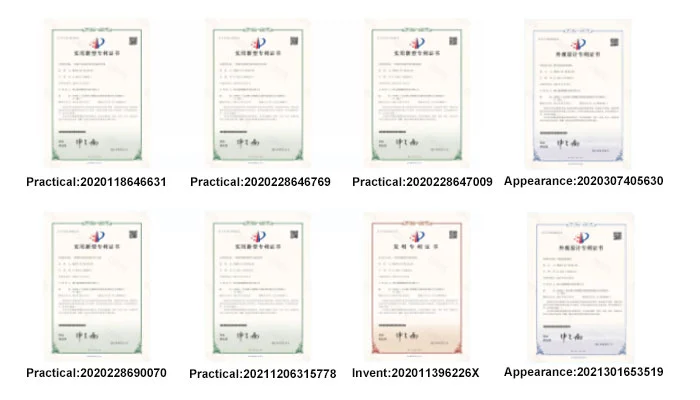

8 Patents Granted

Also certified with CE, 3C and multiple other international & domestic certifications
·Industry-exclusive, proprietary structural patents: Core technologies are protected by intellectual property rights, unreplicable by competing products
·Deep-hole dust removal infeed baffle device: A fully independent patent, specifically designed for deep cleaning of drilled panels, the only solution of its kind in the industry
·8 years of continuous R&D and iterative optimization: In-depth research on all pain points in the cleaning process of panel furniture production, with high technical maturity
·Rigorously validated in mass production by top domestic clients before official global launch: Not a prototype or experimental-stage product

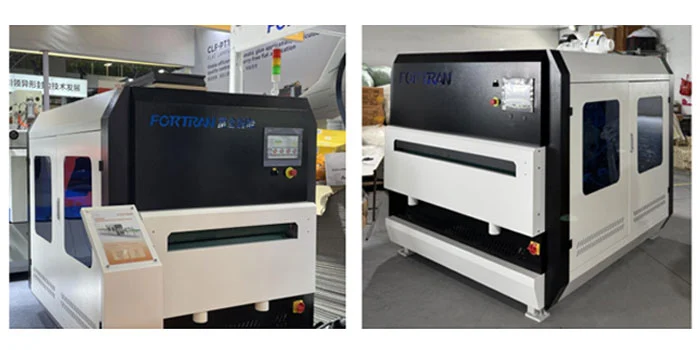

Market Validation & Brand Endorsement

· Tubao Baby Base, Deqing, ZhejiangTubao Baby Base, Deqing, Zhejiang
· Sophia Home Base, Jiaxing, Zhejiang
· Weishang Manufacturing Base, Wuxi, Anhui
· Haier Home (Wormhole) Manufacturing Base, Jinan, Shandong
· Quanyou Furniture Co., Ltd., Chongzhou, Sichuan
· Sophia Home Manufacturing Base, Zengcheng, Guangdong
· Boloni Manufacturing Base, Chongzhou, Sichuan
· Jinpai Manufacturing Base, Suqian, Jiangsu
· Boloni Manufacturing Base, Xianning, Hubei
· Huasheng Panel Manufacturing Base, Zhongshan, Guangdong
· Sunon Office Furniture, Hangzhou, Zhejiang
· Overseas clients: Vietnam, Thailand, India, Saudi Arabia, Dubai, etc.

Product Details

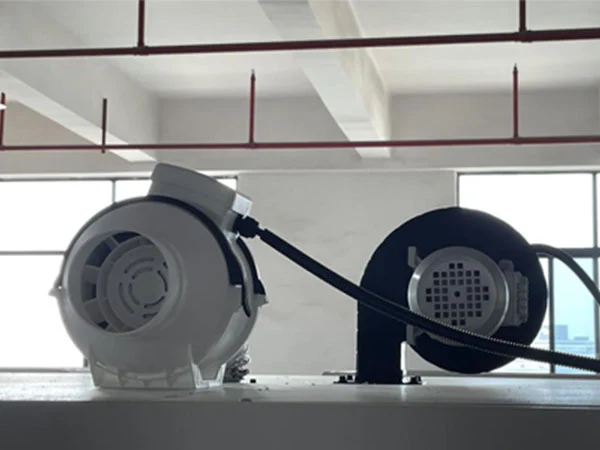

Fresh Air System

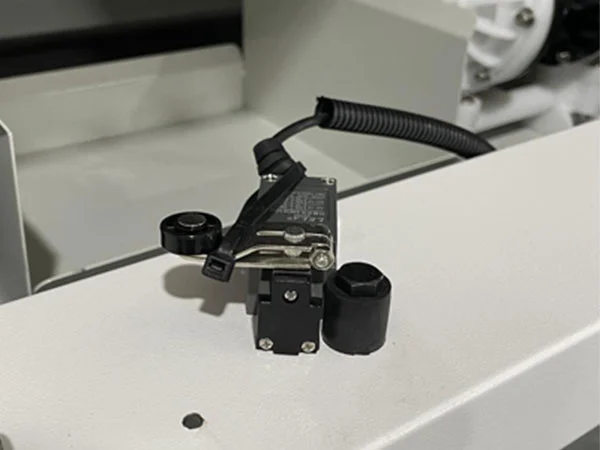

Door Safety Stroke Switch

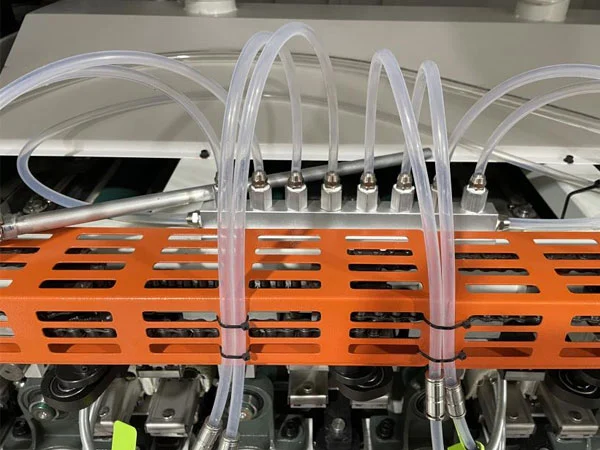

Water Pump

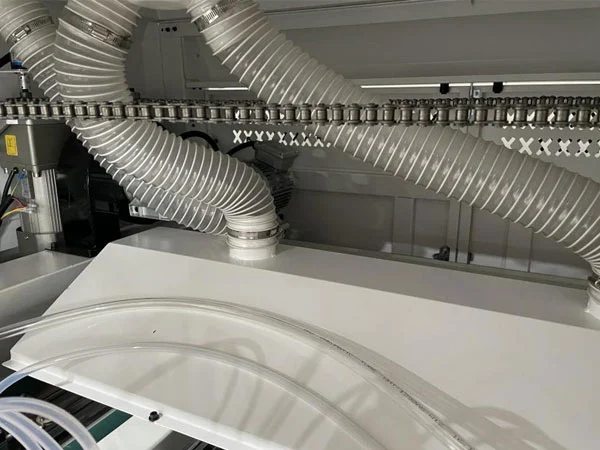

Liquid Level Sensor

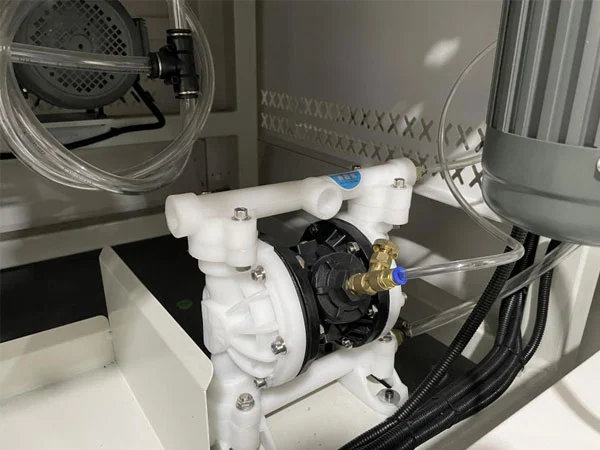

Pneumatic Diaphragm Pump

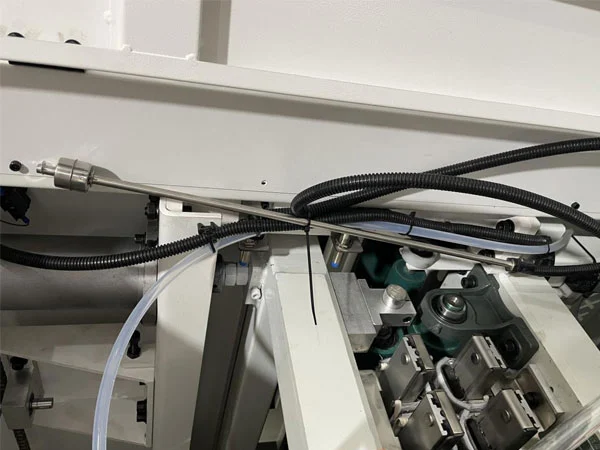

Spray Nozzle

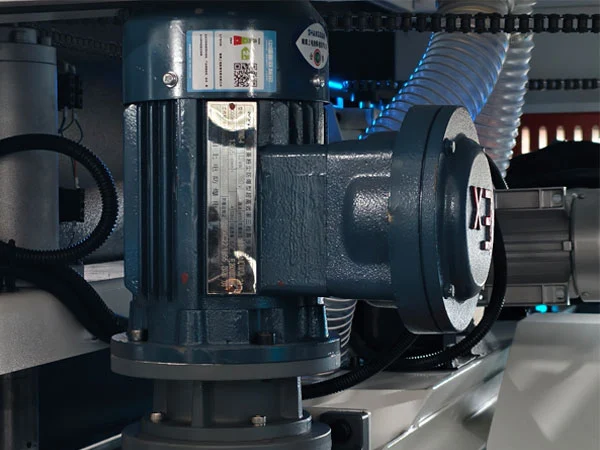

Explosion-Proof Motor

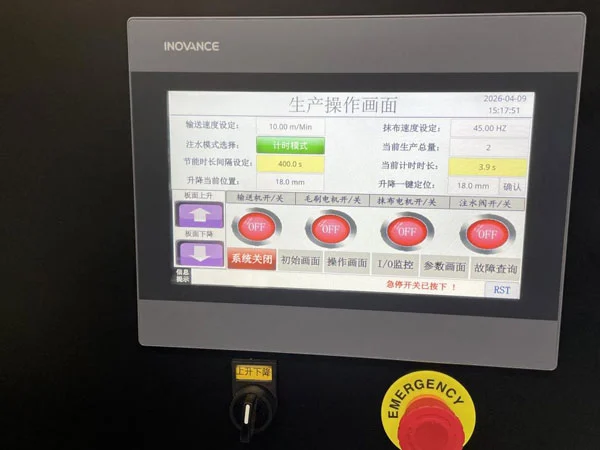

10.1-inch Inovance Control Touch Screen

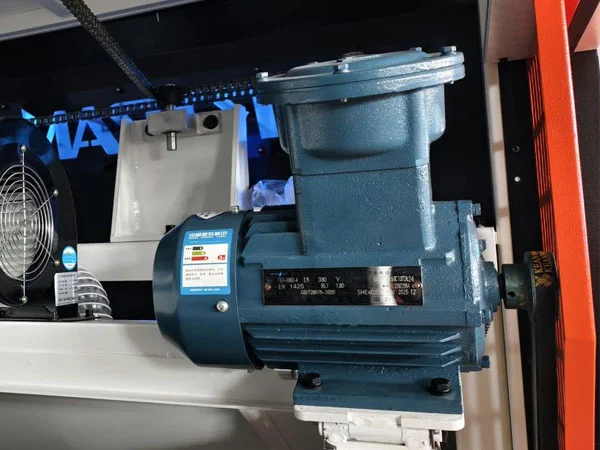

Internal Brush Motor

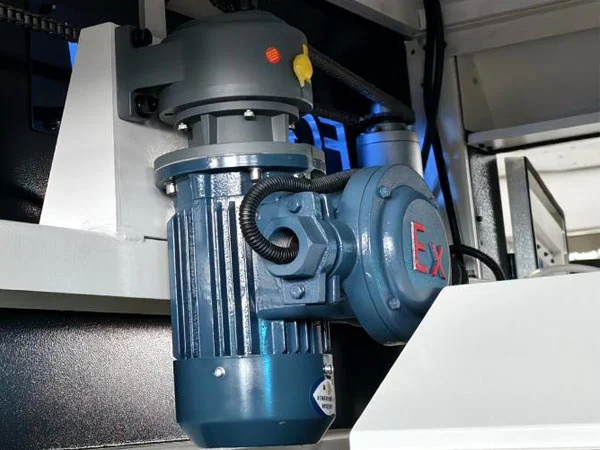

Height Adjustment System

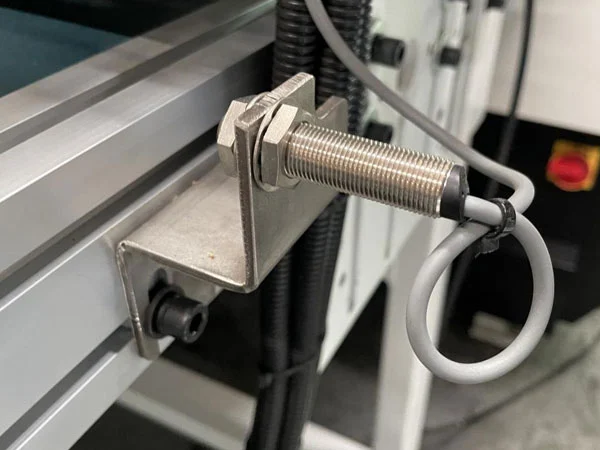

SICK (Germany) Photoelectric Sensor

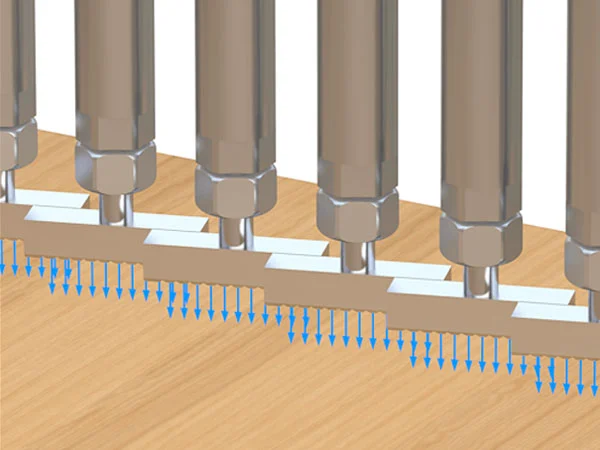

Cyclone Dust Extraction Unit

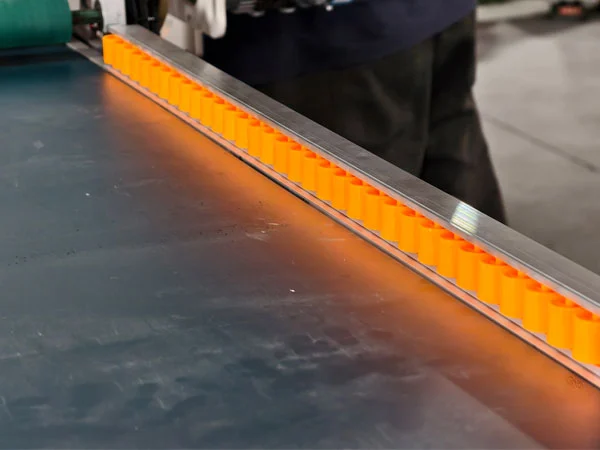

Plate Guide Protective Strip

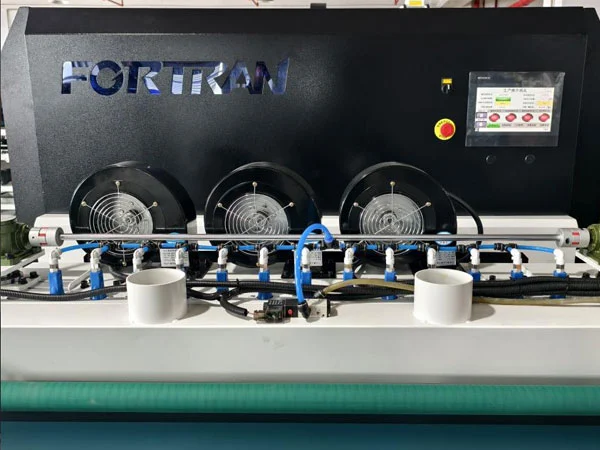

Air Knife High-Pressure Motor Dust Removal

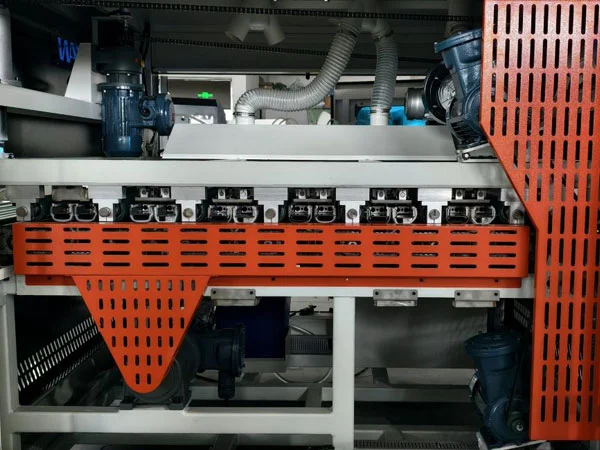

Internal Safety Protective Mesh

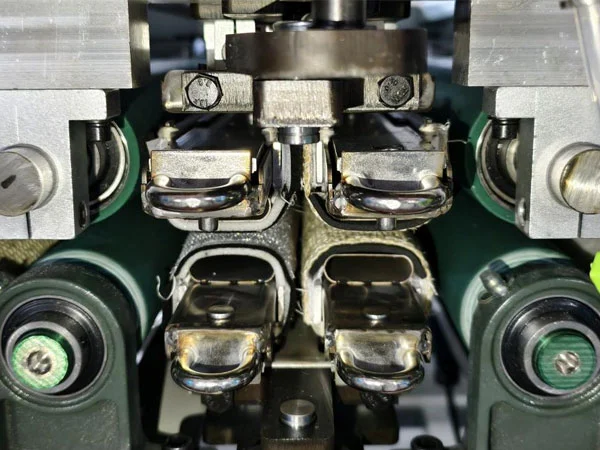

Quick-Change Cleaning Cloth Strip Device

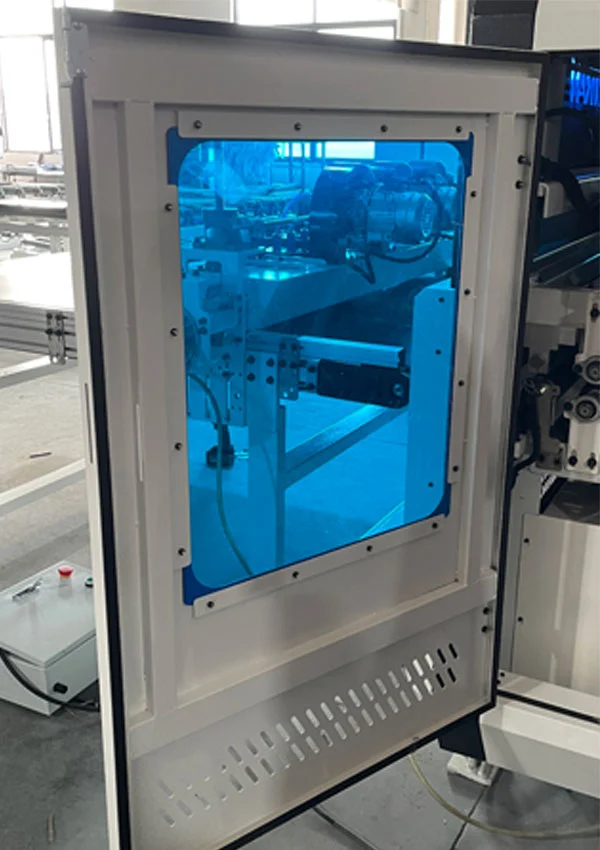

Dustproof Seal Strip

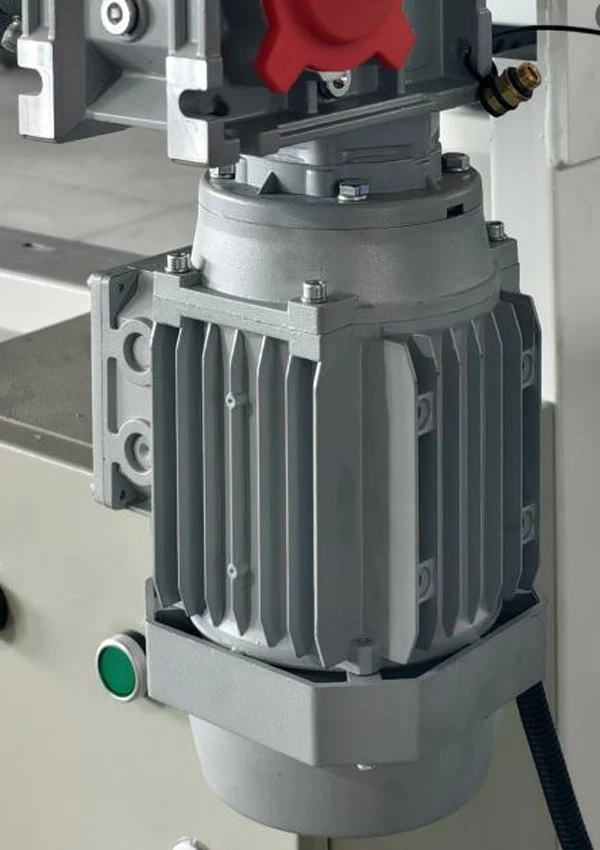

Splash-Proof Motor

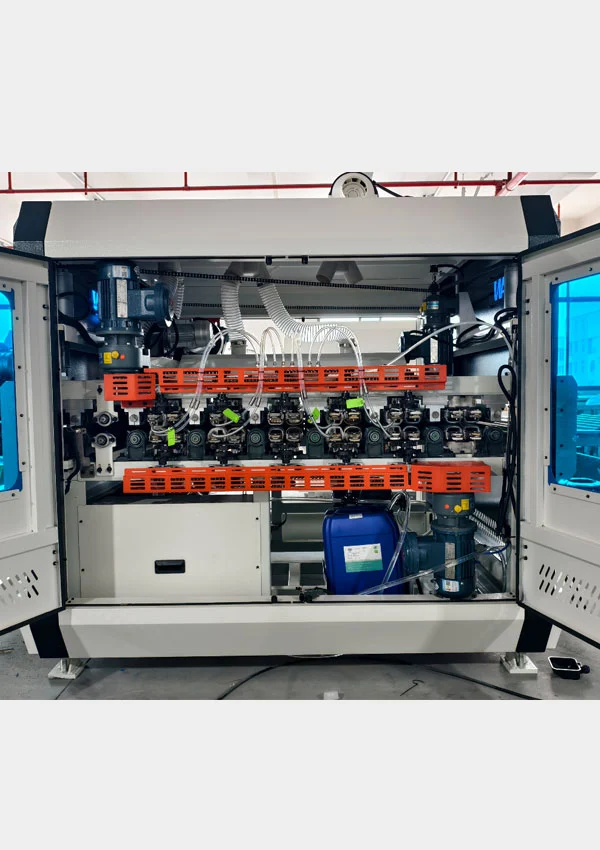

Machine Side View

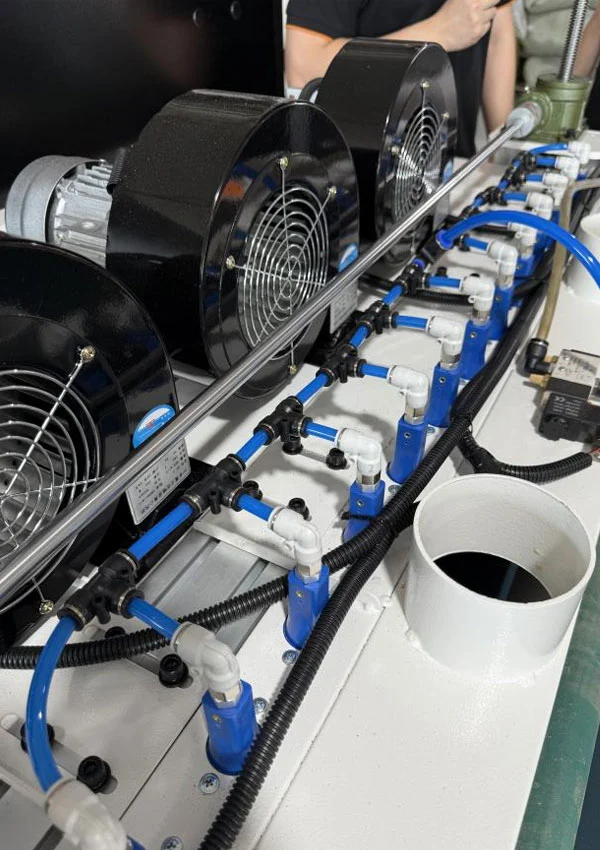

Cyclone Dust Collector

Service & Support

·Free 10+ consumable spare kits (24 double cloth sets, drive belts, bearings, etc.) included
·Complete installation and operation manuals; localized training for overseas distributors
·Line integration with edge banders, sorters, and packaging lines for fully automated production

Products

New Products

View as

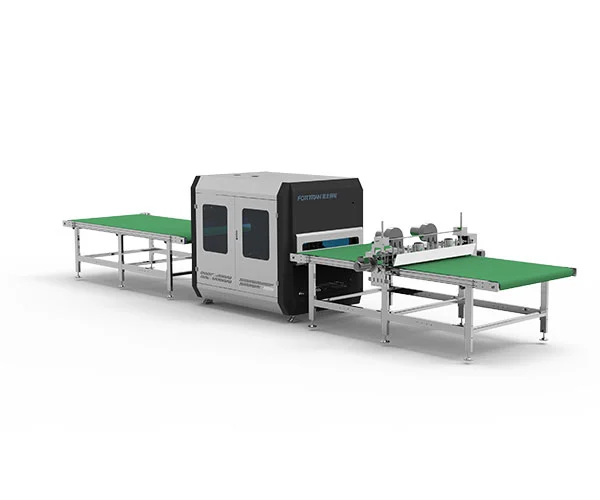

Automatic Wood Board Cleaning Machine for Furniture
