Heavy-duty Powered Ground Roller Conveyor Machine

1.Product Introduction

Heavy-duty powered ground roller conveyor machine can be divided into heavy-duty powered ground roller conveyor machine with forklift space and back positioning and heavy-duty powered ground roller conveyor machine with forklift space. They are suitable for conveying the feed workpiece, which cut by rear feeding cutting saw. With forklift position, it’s easier to load and unload workpiece. With powered back positioning, a large scale of panel can be conveyed easier and not easy to fall.

2. Product Parameter (Specification)

a. Heavy-duty Powered Ground Roller Conveyor Machine with Forklift Space and Back Positioning:

Model	FQ-ZXDGB1328
External Dimension	L3000*W1550*H300mm
Loading capacity	3000kg
Roller diameter	φ108mm (Hot dip galvanized material)
Roller distance	215.5mm
Speed	4-12m/min
Total power	0.75KW
Electric motor	WANSHSIN/ Komc

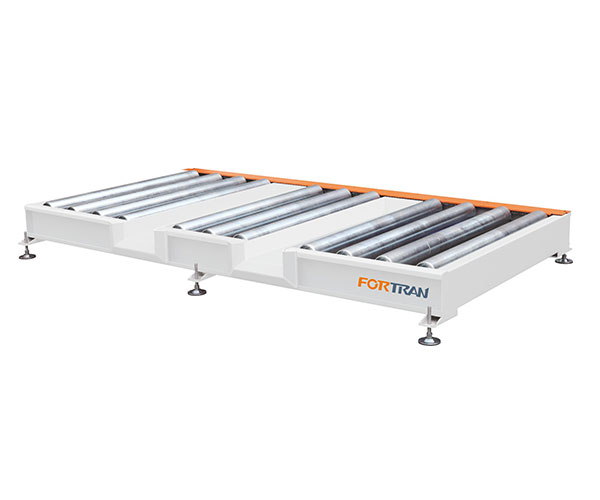

a. Heavy-duty Powered Ground Roller Conveyor Machine with Forklift Space:

Model	FQ-SPDG1330
External Dimension	L3000*W1550*H300mm
Loading capacity	3000kg
Roller diameter	φ108mm (Hot dip galvanized material)
Roller distance	215.5mm
Speed	4-12m/min
Total power	0.75KW
Electric motor	WANSHSIN/ Komc

1.The main beam is punched and welded with 3mm thick steel plate numerical control shear.
2.The joint part is precisely welded by Japanese OTC robot, which is corrosion-resistant and moisture-resistant for a longer service life. The base is A3 plate bending.
3.The foot adopts the integrated bending process, which is firm and durable.
4.Deceleration motor adopts hard tooth surface helical gear motor.

4.Product Details
