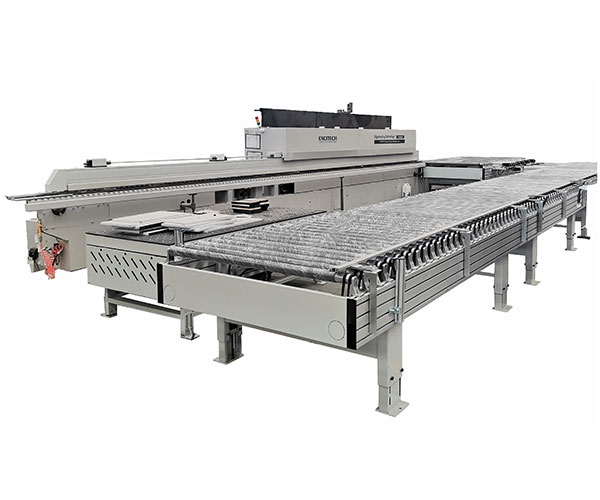

Roller-type Returning Conveyor Line for Edgebanding Machine
  • Roller-type Returning Conveyor Line for Edgebanding MachineRoller-type Returning Conveyor Line for Edgebanding Machine

Roller-type Returning Conveyor Line for Edgebanding Machine

Roller-type Returning Conveyor Line for Edgebanding Machine is a kind of automation line for single one edge banding machine automatic returning. Roller-type Returning Conveyor Line for Edge banding Machine is mainly used in the full-automatic edge banding assembly line for the production of furniture board, cabinet board and so on. Roller-type Returning Conveyor Line for Edge banding Machine can effectively reduce production cost and improve production efficiency.

Send Inquiry

Product Description


1.Product Introduction


Roller-type Returning Conveyor Line for Edgebanding Machine has a high degree of automation; the PLC programming is easy operation, the machine is reliability and with good performance. First the worker manually feed the workpiece by the side, the sealed workpiece will be received by the Roller-type Returning Conveyor Line for Edge banding Machine for automatic returning, and then manually convert the other sides for edge banding again, so as to realize the function of intelligent returning edge banding.





2. Product Parameter (Specification)



Model FQ-UX22
Workpiece range 300*300-1200*2400mm
Workpiece thickness 10~60mm
Maximum loading weight 100kg
Working speed 12~28M/min
Total Power supply 7.5KW


Part one: Machine Head-1


External dimension L3500*W2330mm(1815)*H900±50mm
Roller length 1700mm and 1400mm
Main Beam 240*50 Aluminum profile
Roller Dia 56mm with rubber covered
Rubber thickness 3mm
Distance between rollers 120mm


Part two: Machine Head-2


External dimension L3000*W2660mm (1615)*H900±50mm
Roller length 1500mm
Main Beam 240*50 Aluminum profile
Roller Dia 56mm with rubber covered
Rubber thickness 3mm
Distance between rollers 120mm
Add with Bakelite plate to hold the panel


Part three: Powered roller conveyor


External dimension L6900*W1415mm *H900±50mm
Main Beam 240*50 Aluminum profile
Roller Dia 56mm with rubber covered
Roller length 1300mm
Rubber thickness 3mm
Distance between rollers 120mm


Part four: Pneumatic ball-floating table


Total Dimension L2500*W1200*H800~900mm
Material of the table-board 8#U-steel with Bakelite plate
Main frame 60*40*3mm rectangular tube
Power supply 1.5 KW
With lifting function, lifting range is around 100mm


Part five: Pneumatic ball-floating table


Total Dimension L1800*W600*H900±50mm
Material of the table-board 8#U-steel with Bakelite plate
Air blower 1.5 KW, brand
Leg 60*40*3mm rectangular tube
Main frame 40*60 steel


3. Product Feature And Application

1.Stable conveying, no relative movement between materials and conveying, can reduce the damage to conveying objects;
2.Simple structure, easy to maintain; Low energy consumption and low cost.
3.Not only the operation resistance is small, but also the wear of the workpiece is small, so the productivity is high, which can help reduce the production cost.



4.Product Details
