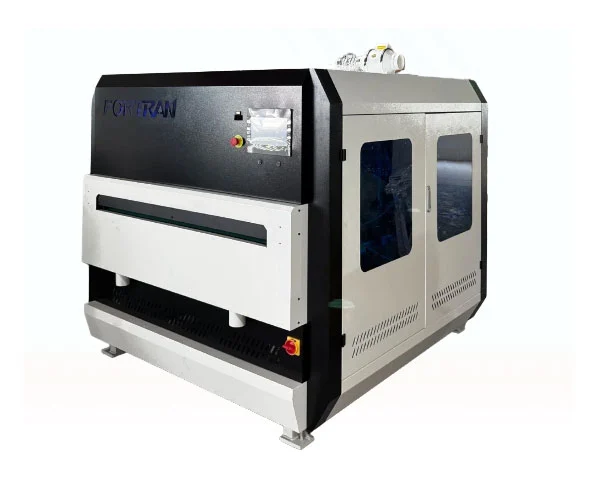

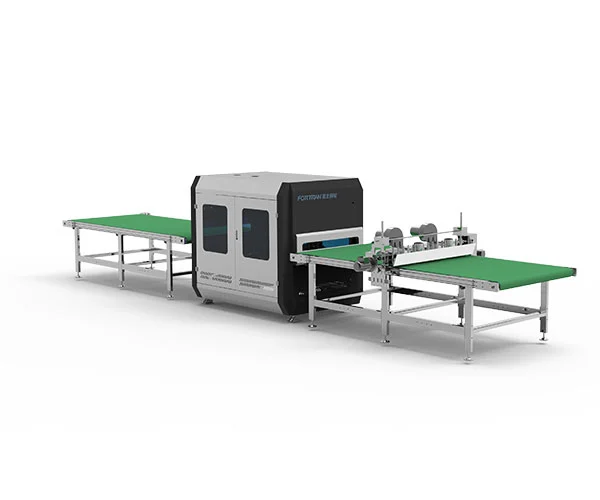

Automatic Wood Board Cleaning Machine for Furniture

As the professional manufacturer, we would like to provide you high quality Automatic Wood Board Cleaning Machine for Furniture. Note: Replace consumables on schedule to maintain optimal cleaning performance.

Send Inquiry

Product Description

Consumable Replacement Schedule

Replace consumables on schedule to maintain optimal cleaning performance.

Consumable	Qty per Change	Change Interval	Reuse Cycles	Reuse Condition	Discard Condition
White water-dispensing cloth (Water Pad)	8 pcs	Every 1 day	3 cycles	Wash after each use (initial use + 2 washes)	Discard when worn
Grey anti-static wiping cloth (Anti-Static Pad)	6 pcs	Every 2 days	3 cycles	Wash after each use (initial use + 2 washes)	Discard when worn
Jute/hessian scrubbing cloth (Jute Pad)	8 pcs	Every 3–5 days	Up to 5–7 days	Continue use if intact	Replace when torn or degraded
Black hook-and-loop wiping cloth (Burr Pad)	2 pcs	Every 2 days	Single use	—	Replace immediately when damaged
White foam pad (White Sponge)	14 pcs	Every 1 day	Single use	—	Replace immediately when damaged
Black foam pad (Black Sponge)	10 pcs	Every 3 days	Single use	—	Replace immediately when damaged
Velcro edge strips (Hook-and-Loop Strips)	48 strips (24 sets)	Every 2 months	Single use	—	Replace when adhesion is lost

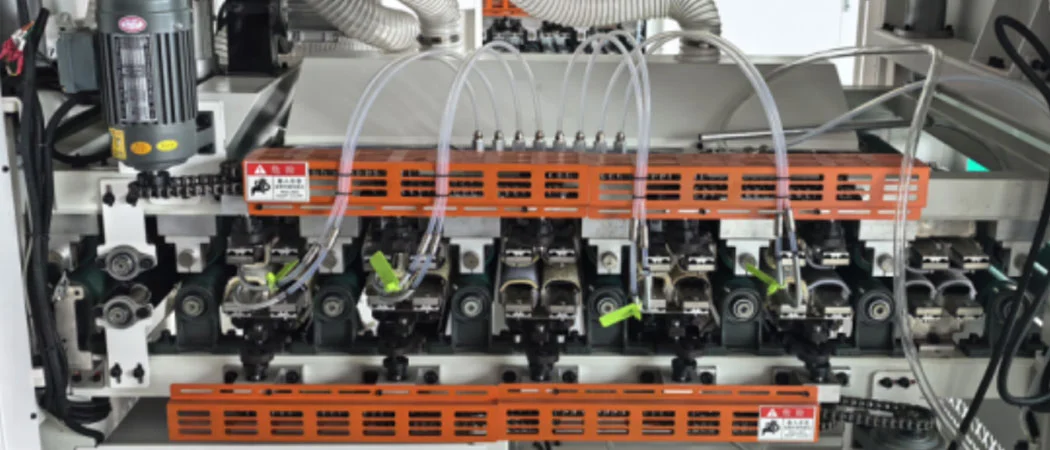

Cloth & Foam Pad Pairing Configuration

Each replacement spindle assembly uses a paired cloth-and-foam combination as specified below.

The Panel Surface Cleaning Machine is equipped with 24 wiper spindles in total, arranged in two rows (12 spindles per row, upper and lower). All pairing quantities below refer to one full replacement set.

Cloth Type	Foam Pad Type	Spindles per Set	Mounting Note
White water-dispensing cloth (Water Pad)	White foam pad	8 spindles	Paired set
Grey anti-static wiping cloth (Anti-Static Pad)	White foam pad	6 spindles	Paired set
Jute/hessian scrubbing cloth (Jute Pad)	Black foam pad	8 spindles	Paired set
Black hook-and-loop cloth (Burr Pad)	Black foam pad	2 spindles	Paired set
Velcro edge strips	—	2 strips per spindle	Secured with screws on both sides of replacement spindle; 24 spindles x 2 strips = 48 strips total

Cloth & Foam Pad Pairing Configuration

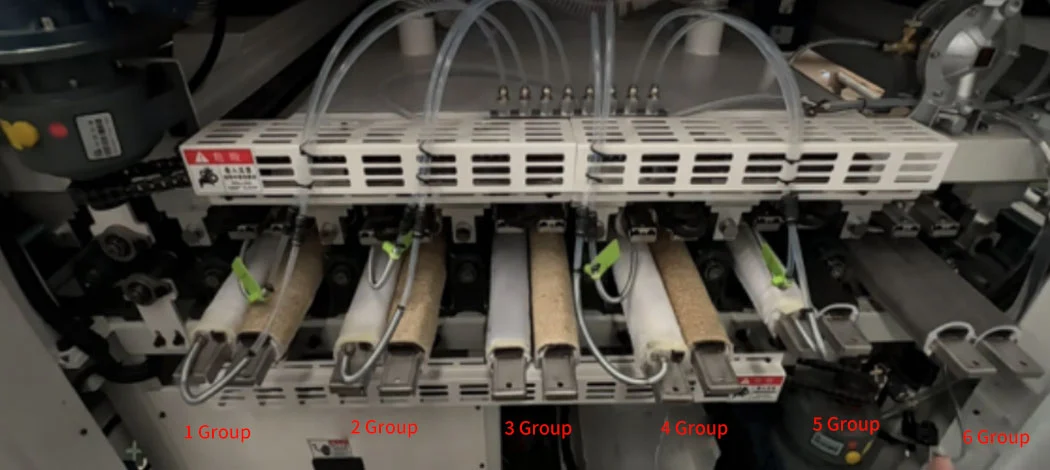

Wiper Spindle Layout & Cleaning Sequence

Spindles are arranged in 6 groups of 4 (left to right), covering the full cleaning cycle in sequence.

Group	Position (L to R)	Spindle Configuration	Function
1	Group 1	Water Pad (water dispensing) + Jute Pad	Pre-wet panel surface; initial scrub to loosen debris
2	Group 2	Water Pad (water dispensing) + Jute Pad	Second wet scrub; deeper cleaning pass
3	Group 3	Burr Pad (hook-and-loop) + Jute Pad	Adhesive/glue residue removal; secondary scrub
4	Group 4	Water Pad (water dispensing) + Jute Pad	Final wet scrub; surface rinse
5	Group 5	Water Pad (water dispensing) + Anti-Static Pad	Controlled rinse; initial moisture removal
6	Group 6	Anti-Static Pad + Anti-Static Pad	Final moisture wipe-down; anti-static finish

Wiper Spindle Layout & Cleaning Sequence

Operating Procedures & Maintenance Precautions

A | Pre-Operation Checks & Panel Feeding

Before loading panels, verify that the pressure beam height is set to match the panel thickness.

Minimum panel length: 350 mm. Panels shorter than 350 mm must NOT be fed into the machine.

When loading panels, leave a 15–20 mm clearance on both sides relative to the machine width. Fill the centre space fully — this improves cleaning efficiency and reduces water consumption.

B | Water Dispensing System

At the start of each shift (morning, midday, and end of day), and whenever the Automatic Wood Board Cleaning Machine for Furniture has been idle for 15 minutes or more without feeding panels, perform a manual water dispensing cycle before resuming operation.

Recommended water dispensing interval: 250–500 seconds. Dispensing duration per cycle: 3–5 seconds. Adjust based on panel contamination level and feed speed.

Note: The cloth bracket fitted with the water supply tube is directional — upper and lower positions must NOT be swapped.

C | Routine Inspection & Periodic Maintenance

Freq	Inspection Item	Action Required
Each shift (start & end)	Inspect all wiper cloths and jute pads for wear or damage	Replace immediately if torn, frayed, or otherwise degraded
Each cloth change	Check Velcro strip adhesion on replacement spindles	Replace strips if adhesion is insufficient
Each cloth change	Check guide sliders for wear	Replace worn sliders promptly to maintain feed accuracy
Monthly	Inspect sprocket mounting bolts for looseness	Re-tighten any loose fasteners; torque to specification
Monthly (approx.)	Lubricate drive chains	Apply grease to all drive chains; use an appropriate machinery grease

REF | Technical Terminology Reference

Technical Term	Description / Usage Note
Water Pad (Water-Dispensing Cloth)	White wiper cloth with integrated water supply line; pre-wets the panel surface prior to scrubbing
Anti-Static Pad	Grey anti-static wiper cloth; used for final moisture removal and electrostatic discharge on cleaned panels
Jute Scrubbing Cloth	Coarse-woven jute fabric; primary mechanical scrubbing element for removing surface debris and contaminants
Burr Pad (Hook-and-Loop Wiper)	Black micro-hooked fabric wiper; specifically designed to strip adhesive residue, glue spots, and cured deposits
White Foam Pad	Open-cell polyurethane foam backing; paired with Water Pad and Anti-Static Pad for cushioned moisture absorption
Black Foam Pad	Dense foam backing pad; paired with Jute Cloth and Burr Pad to provide firm scrubbing support
Velcro Edge Strips (Hook-and-Loop Retaining Strips)	Adhesive-backed fastening strips securing wiper cloths to spindle ends; replace when holding force is insufficient
Replacement Spindle Assembly	Modular wiper spindle unit pre-loaded with cloth and foam pad; designed for rapid tool-free changeover
Pressure Beam	Horizontal clamping beam that applies calibrated downward pressure to panels during the feed cycle; must be set to panel thickness before operation
Water Supply Bracket	Cloth-holding bracket with integrated water feed tube; positional — upper and lower orientations are not interchangeable
Guide Slider	Linear bearing slider maintaining lateral panel alignment throughout the feed path; replace when wear affects tracking accuracy
Drive Sprocket	Toothed sprocket wheel transmitting rotational drive to the conveyor chain system
Drive Chain	Roller-link conveyor chain; requires greasing approximately every 30 days to prevent wear and elongation
Panel Feed Cycle	Single pass of a panel through the full cleaning sequence from entry to exit
Manual Water Prime	Operator-initiated water dispensing cycle performed before resuming production after idle periods of 15 minutes or more

This document is for authorised distributors and operators only. All technical content, product designs, and specifications remain the exclusive intellectual property of Guangdong Fortran Machinery Co., Ltd. Unauthorised reproduction or distribution is strictly prohibited.
