Unpowered Roller Type Rail Rotary Trolley

1.Product Introduction

Unpowered Roller Type Rail Rotary Trolley includes single row of unpowered roller track rotating trolley and unpowered drum type track rotating trolley double row. Trolley is locked by winding handle. Unpowered roller type rail rotary trolley is another option according to project moving panel from one area to another in a different direction.

2. Product Parameter (Specification)

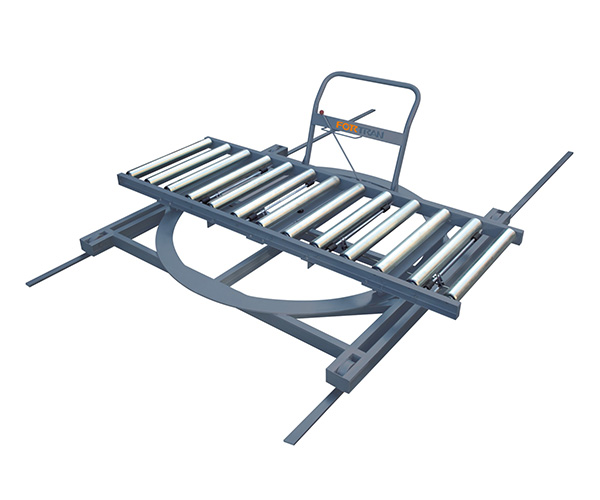

a. Single Row of Unpowered Roller Track Rotary Trolley:

Model	FQ-ZPC-C
External Dimension	L2400*W600*H300mm
Roller Length	500mm
Roller center distance	200mm
Main beam	80*40*2.0mm
Roller size	φ76*1.5mm
Roller bearing	φ15mm
Loading capacity	600kg/meter (dynamic loads); 800kg/meter (static loads)

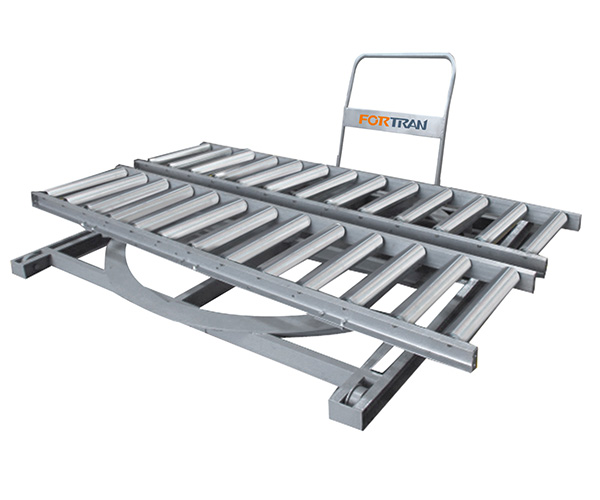

b. Unpowered Drum Type Track Rotating Trolley Double Row:

Model	FQ-SZPC-C
External Dimension	L2400*W1200*H300mm
Roller Length	500mm
Roller center distance	200mm
Main beam	80*40*2.0mm
Roller size	φ76*1.5mm
Roller bearing	φ15mm
Loading capacity	600kg/meter (dynamic loads); 800kg/meter (static loads)

1.Roller is produced by Fortran, and it is made of hot-dip galvanized pipe with high corrosion resistance and can pass the 72-hour salt spray test.
2.The main beam is produced by Fortran, and it makes use of high-strength steel trough main beam, which has strong load capacity and stable structure.
3.The steel wheel makes use of high-quality solid steel wheel with high durability and strong impact resistance.
4.The wheel frame is made of high-strength wheel frame to provide sufficient support to trolley. The surface is disposed of powder spraying, which is not easy to corrode and rust.
5.The welding part is welded by robot. Compared with traditional manual welding, the welding quality is high to prevent uneven welding quality.
