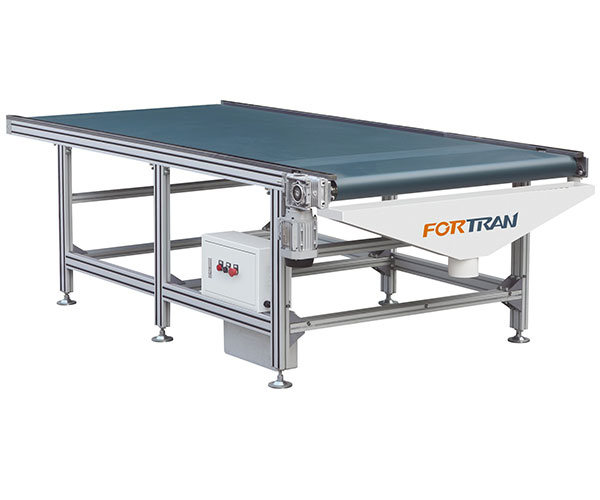

Pvc Belt Type Returning Conveyor Line

1.Product Introduction

PVC Belt Type Returning Conveyor Line can effectively reduce production cost and improve production efficiency. PVC Belt Type Returning Conveyor Line is mainly used in the full-automatic edge banding assembly line for the production of furniture board, cabinet board and so on. First the worker manually feed the workpiece by the side, the sealed workpiece will be received by the PVC Belt Type Returning Conveyor Line for automatic returning, and then manually convert the other sides for edge banding again, so as to realize the function of intelligent returning edge banding.

2. Product Parameter (Specification)

Model	FQ-BHX16
Min panel size	150*300mm
Max panel size	1200*1800mm
Panel thickness	10-60mm
Conveying speed	12-30 meters/min
Frequency converter	Taiwan Delta
Power supply (voltage and frequency)	3 phase, 380V, 50Hz, 3.4KW
Edge banding machine length	6000mm
Edge banding machine working height	900±50mm

Part 1------Belt conveyor

Dimension	L690*W1260*H900mm
Belt character	PVC belt
Belt thickness	3mm

Part 2------Belt conveyor

Dimension	L2030*W1510*H900mm
Belt character	PVC belt
Belt thickness	3mm

Part 3------Belt conveyor

Dimension	L7000*W1350*H900mm
Belt character	PVC belt
Belt thickness	3mm

1.Stable conveying, no relative movement between materials and conveying, can reduce the damage to conveying objects;
2.Simple structure, easy to maintain; Low energy consumption and low cost.
3.Not only the operation resistance is small, but also the wear of the workpiece is small, so the productivity is high, which can help reduce the production cost.

4.Product Details
