3 Tons Hydraulic Lifting Table
  • 3 Tons Hydraulic Lifting Table3 Tons Hydraulic Lifting Table
  • 3 Tons Hydraulic Lifting Table3 Tons Hydraulic Lifting Table

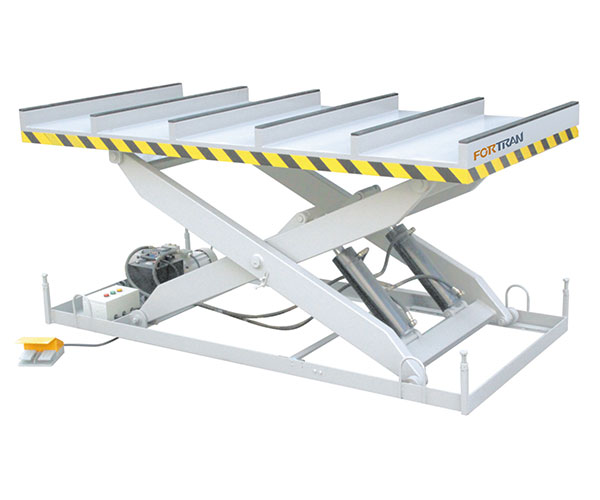

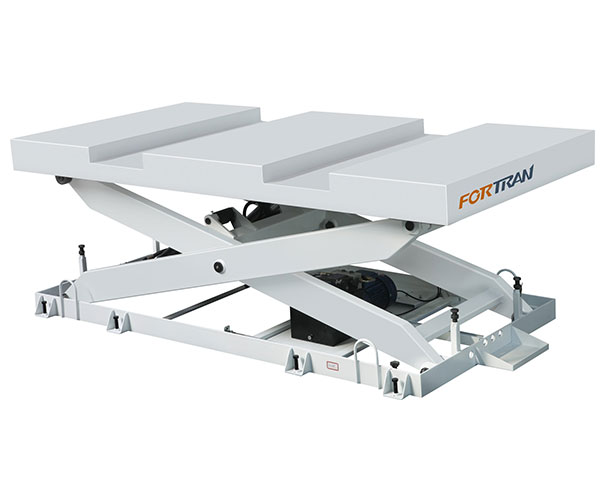

3 Tons Hydraulic Lifting Table

3 Tons Hydraulic Lifting Table is mainly through the pressure transmission of hydraulic oil to achieve the lifting function, 3 Tons Hydraulic Lifting Table its scissor fork mechanical structure makes it can lift and down with higher stability, and also with wide operating platform and higher bearing capacity. The brand FORTRAN has the biggest production base of 3 Tons Hydraulic Lifting Table and domestically we are Nanxing officially vendor.

Send Inquiry

Product Description


1.Product Introduction


3 Tons Hydraulic Lifting Table is a kind of lifting equipment with good lifting stability and wide application range. It is mainly used for transporting goods between the height differences of production line. The 3 Tons Hydraulic Lifting Table normally worked with CNC Panel Saw and CNC Nesting Machine, for workpiece feeding. The 3 Tons Hydraulic Lifting Table is with high quality and competitive price which can improve the production efficiency for the customers.



2. Product Parameter (Specification)


Table size 2500*1250mm
Min. Height 450mm
Max. Height 1650mm
Load 3000KG
Voltage 3KW, 3 Phases 380V, 50Hz
Oil cylinder Imported brand
Sealing ring Imported brand
Production standard CE certificate
With dual hydraulic cylinders and safety valves fitted
Table surface with forklift space



3. Product Feature And Application

1.High strength manganese steel scissors, high hardness and strength frame.
2.Foot switch control, simple operation, simplifying the operation of workers.
3.The welding parts of the lifting table are equipped with fixtures, high precision and standardized production, and stable quality.
4.It supports manual/motorized forklift loading, and it can be placed directly.


4.Product Details
