Efficient cutting, intelligent packaging — Analysis of the core advantages of automatic paper cutters

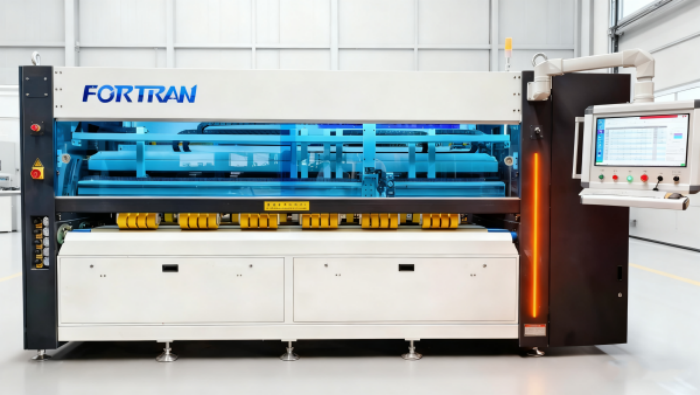

The automatic paper cutting machine is a core cutting equipment in industries such as panel furniture packaging, e-commerce logistics, and hardware accessory packaging.

It realizes automatic and precise cutting of carton blanks through intelligent control, adapts to the packaging needs of plates of different sizes, and serves as a key pre-equipment in automated packaging lines.

Detailed Introduction to New Products：

1. Paper Storage Rack

The paper storage rack is made by bending pickled plates. It has a simple structure, is firmly constructed, and undergoes cold galvanizing treatment, resulting in an attractive appearance and excellent rust resistance.

It comes with 6 paper bins as standard, which can be appropriately reduced or increased according to different customer needs, making it flexible and highly adaptable.

2. Frame Assembly

The frame is formed by welding rectangular tubes and steel plates, followed by overall precision machining. It features high assembly accuracy and operational precision, ensuring the equipment has a long service life and good stability.

3. Transmission Device

The feeding pressure wheel is made of PU material, which has a bright and attractive surface and appropriate friction, effectively improving the reliability of paper delivery.

Meanwhile, the traction drum is imported from Germany, ensuring long-lasting durability.

4. Cross-cutting Assembly

Power is provided by a high-precision servo motor + reducer + synchronous wheel mechanism, enabling high-speed and precise positioning, thus ensuring the accuracy of carton cuts.

5. Longitudinal Cutting Unit

This mechanism mainly consists of 7 sets of tool holders. The 7+1 tool set can realize universal cutting for box types 410 and 411. It can meet the needs of efficient operation while achieving long-term durability.

6. Bin Adjustment Device

The main boards at both ends are processed by CNC to ensure the parallelism of both sides. High-strength chains are used for lifting up and down to ensure safety and reliability without tooth skipping.

To improve operational precision and efficiency, we use a high-precision bevel gear reducer equipped with a high-precision servo motor. To improve paper utilization, this mechanism is set with 6 paper bins,

which can be increased or decreased as appropriate according to different customer needs, making it convenient and highly adaptable.

7. Paper Bin Accessories

Mainly used for decorating the machine itself. The machine is equipped with an external protective cover, which is spray-painted, ensuring it is beautiful, delicate, and does not peel off.

The observation window at the front of the machine is made of acrylic board, which is aesthetically pleasing, grand in appearance, has good toughness, and is not easy to break.

8. Guillotine Mechanism

It can cut a 7mm guillotine incision. The lifting of the guillotine is controlled by a servo motor, and its left and right movement is also driven by a servo motor to achieve precise positioning.

For cardboard of different thicknesses, it can also be finely adjusted up and down through the servo system, making it highly adaptable.

9. Vibrating Knife Mechanism

It has the function of cutting special-shaped holes. It adopts a full servo control mode, with precise positioning and fast cutting speed, and can efficiently meet the processing requirements for special shapes.

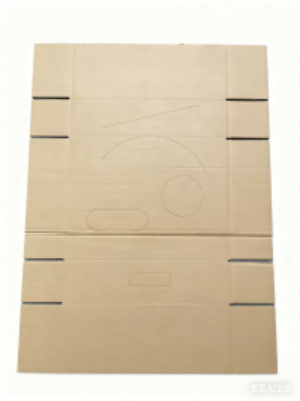

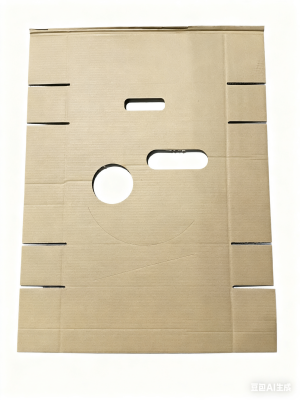

   Display of Custom Cutting Function
